2020 Triumph Street Triple RS
It was only a couple of years ago, 2017 in fact, that the Street Triple RS got its big boost from 675 to 765cc in capacity. Now for 2020 that 765 cc engine has undergone quite a major revamp and now boasts a lot more performance than before.
How big an improvement? How about a massive 9 per cent boost in horsepower and a 9 per cent improvement in mid-range torque! That’s pretty damn impressive and sees the 2020 Street Triple RS generating 121 horsepower at 11,750 tpm and 79 Nm of torque peaking at 9350 rpm.
Engine inertia has also been reduced by 7 per cent due to improved manufacturing tolerances.

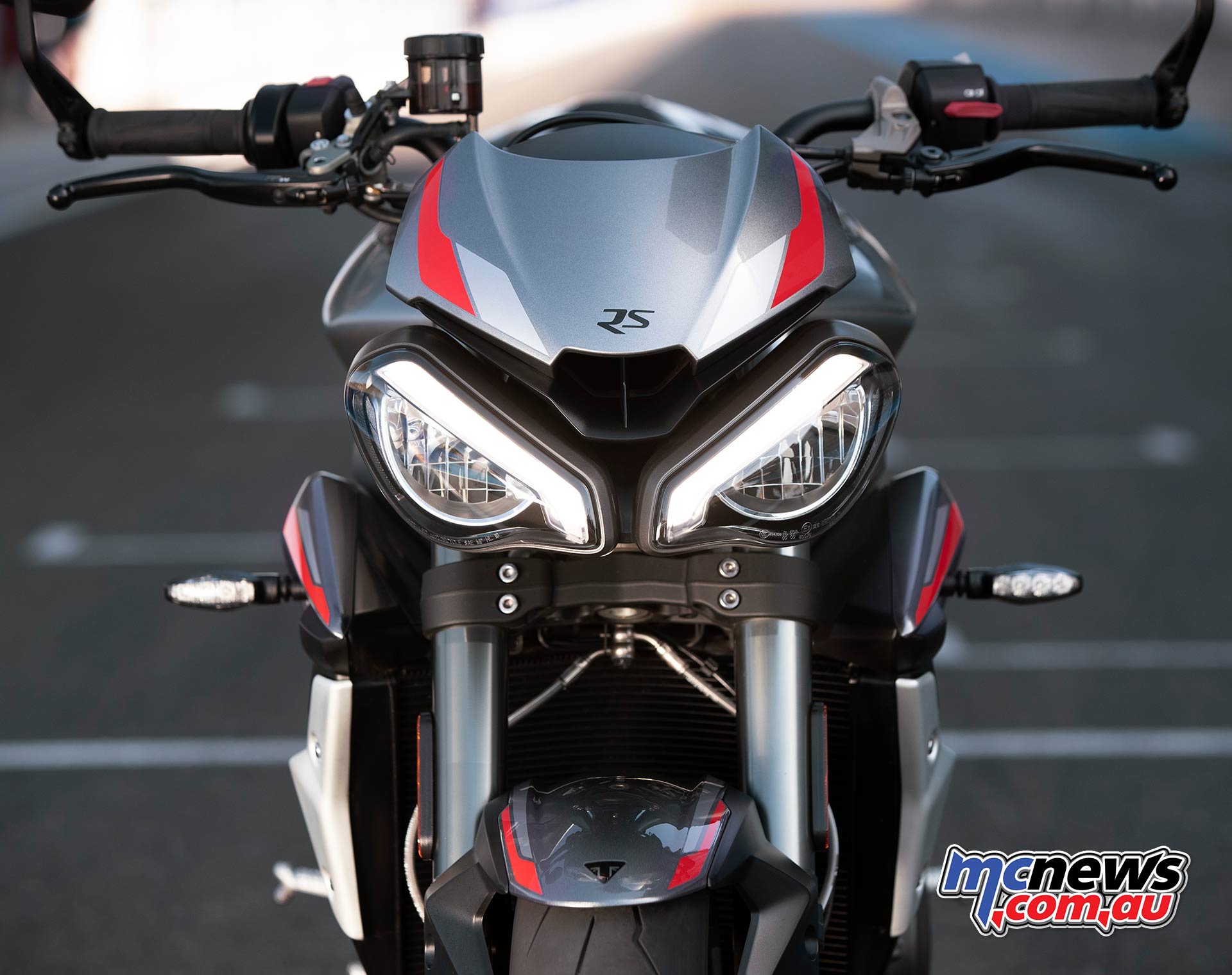

New LED headlights and daytime running lights sharpen the front end look and combine with a more angular silhouette all round.
Instrumentation has gone full TFT and is available with GoPro and Bluetooth functionality to provide turn-by-turn navigation cues on the display.
An up-down quick-shifter continues the up-spec theme along with five riding modes, Brembo M50 four-piston radial stoppers and Ohlins hardware suspending both ends of the 166 kilogram machine.
I’ve always enjoyed the playful Street Triple more than the big-bore Speed Triple, and with this new bike I reckon that trend looks to continue.
Pricing has not yet been revealed by Triumph Australia but they do expect Australian stocks to land by December, 2019.
2020 Triumph Street Triple RS and S
Technical Specifications
| Street Triple RS | |
| Specifications | |
| Engine Type | Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder |
| Capacity | 765 cc |
| Bore Stroke | 77.99 mm / 53.4 mm |
| Compression | 12.54:1 |
| Max Power | 123 PS / 121.36 BHP (90.5 kW) @11750 rpm |
| Max Torque | 79 Nm @ 9350 rpm |
| System | Multipoint sequential electronic fuel injection with SAI. Electronic throttle control |
| Exhaust | Stainless steel 3 into 1 exhaust system low single sided stainless steel silencer |
| Final Drive | X ring chain |
| Clutch | Wet, multi-plate, slip-assisted |
| Gearbox | 6-speed with Triumph Shift Assist |
| Frame | Front – Aluminium beam twin spar Rear – 2 piece high pressure die cast |
| Swingarm | Twin-sided, cast aluminium alloy |
| Front Wheel | Cast aluminium alloy 5-spoke 17 x 3.5 in |
| Rear Wheel | Cast aluminium alloy 5-spoke 17 x 5.5 in |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 180/55 ZR17 |
| Front Suspension | Showa 41 mm upside down big piston forks (BPF), Adjustable compression damping, rebound damping and preload adjustment. |
| Rear Suspension | Ohlins STX40 fully-adjustable piggyback reservoir RSU |
| Front Brake | Twin 310 mm floating discs, Brembo M50 4 – piston radial monobloc calipers |
| Rear Brake | Single 220 mm disc, Brembo single piston caliper, switchable ABS |
| Width Handlebars | 775 mm |
| Height Without Mirrors | 1085 mm |
| Seat Height | 825 mm |
| Wheelbase | 1405 mm |
| Rake | 23.9Ëš |
| Trail | 100 mm |
| Dry Weight | 166 kg |
| Tank Capacity | 17.4 Litres |
| Street Triple S LAMS | |
| Specifications | |
| Engine Type | Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder |
| Capacity | 660 cc |
| Bore Stroke | 76.0 x 48.5 mm |
| Compression | 12.13:1 |
| Max Power | 52 Hp @ 11,250 rpm |
| Max Torque | 61Nm @ 6,000 rpm |
| System | Multipoint sequential electronic fuel injection with SAI. Electronic throttle control |
| Exhaust | Stainless steel 3 into 1 exhaust system low single sided stainless steel silencer |
| Final Drive | X ring chain |
| Clutch | Wet, multi-plate |
| Gearbox | 6-speed |
| Frame | Front – Aluminium beam twin spar. Rear – 2 piece high pressure die cast |
| Swingarm | Twin-sided, cast aluminium alloy |
| Front Wheel | Cast aluminium alloy 5-spoke 17 x 3.5 in |
| Rear Wheel | Cast aluminium alloy 5-spoke 17 x 5.5 in |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 180/55 ZR17 |
| Front Suspension | Showa 41 mm upside down forks |
| Rear Suspension | Showa piggyback reservoir monoshock, adjustable preload |
| Front Brake | Twin 310 mm floating discs, Nissin 2-piston sliding calipers, switchable ABS |
| Rear Brake | Single 220 mm disc, Brembo single piston caliper, switchable ABS |
| Handlebar Width | 765 mm |
| Height Without Mirrors | 1060 mm |
| Seat Height | 810 mm |
| Wheelbase | 141 0mm |
| Rake | 24.8° |
| Trail | 104.3 mm |
| Dry Weight | 168 Kg |
| Tank Capacity | 17.4 Litres |
- Street Triple RS
Street Triple RS Specifications Engine Type Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder Capacity 765 cc Bore Stroke 77.99 mm / 53.4 mm Compression 12.54:1 Max Power 123 PS / 121.36 BHP (90.5 kW) @11750 rpm Max Torque 79 Nm @ 9350 rpm System Multipoint sequential electronic fuel injection with SAI. Electronic throttle control Exhaust Stainless steel 3 into 1 exhaust system low single sided stainless steel silencer Final Drive X ring chain Clutch Wet, multi-plate, slip-assisted Gearbox 6-speed with Triumph Shift Assist Frame Front – Aluminium beam twin spar Rear – 2 piece high pressure die cast Swingarm Twin-sided, cast aluminium alloy Front Wheel Cast aluminium alloy 5-spoke 17 x 3.5 in Rear Wheel Cast aluminium alloy 5-spoke 17 x 5.5 in Front Tyre 120/70 ZR17 Rear Tyre 180/55 ZR17 Front Suspension Showa 41 mm upside down big piston forks (BPF), Adjustable compression damping, rebound damping and preload adjustment. Rear Suspension Ohlins STX40 fully-adjustable piggyback reservoir RSU Front Brake Twin 310 mm floating discs, Brembo M50 4 – piston radial monobloc calipers Rear Brake Single 220 mm disc, Brembo single piston caliper, switchable ABS Width Handlebars 775 mm Height Without Mirrors 1085 mm Seat Height 825 mm Wheelbase 1405 mm Rake 23.9Ëš Trail 100 mm Dry Weight 166 kg Tank Capacity 17.4 Litres - Street Triple S LAMS
Street Triple S LAMS Specifications Engine Type Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder Capacity 660 cc Bore Stroke 76.0 x 48.5 mm Compression 12.13:1 Max Power 52 Hp @ 11,250 rpm Max Torque 61Nm @ 6,000 rpm System Multipoint sequential electronic fuel injection with SAI. Electronic throttle control Exhaust Stainless steel 3 into 1 exhaust system low single sided stainless steel silencer Final Drive X ring chain Clutch Wet, multi-plate Gearbox 6-speed Frame Front – Aluminium beam twin spar. Rear – 2 piece high pressure die cast Swingarm Twin-sided, cast aluminium alloy Front Wheel Cast aluminium alloy 5-spoke 17 x 3.5 in Rear Wheel Cast aluminium alloy 5-spoke 17 x 5.5 in Front Tyre 120/70 ZR17 Rear Tyre 180/55 ZR17 Front Suspension Showa 41 mm upside down forks Rear Suspension Showa piggyback reservoir monoshock, adjustable preload Front Brake Twin 310 mm floating discs, Nissin 2-piston sliding calipers, switchable ABS Rear Brake Single 220 mm disc, Brembo single piston caliper, switchable ABS Handlebar Width 765 mm Height Without Mirrors 1060 mm Seat Height 810 mm Wheelbase 141 0mm Rake 24.8° Trail 104.3 mm Dry Weight 168 Kg Tank Capacity 17.4 Litres
